HQ59 Type Railway Gearbox Bearing Dismantling Machine
|
Produktdetails:
Zahlung und Versand AGB:
|
Ausführliche Produkt-Beschreibung
| Produktname: | Wheelset-Gang-Versammlungs-Presse | Funktion: | Bullenausrüstung, die die Ablagerung lagern |
|---|---|---|---|
| Anwendung: | Eisenbahndepots | Nenndruck: | 160kn |
| Anzahl der Arbeitszylinder: | 2 (1 ließ + 1 Recht) | Zylinderanschlag: | 300 mm |
| Kontrolle: | Siemens plc | Installierte Stromkapazität: | 5kW |
| Stromversorgung: | AC 380V/50 Hz | Achsenlänge: | 2100-2500mm |
| Hervorheben: | railway gearbox bearing dismantling machine,wheelset gear assembly press machine,HQ59 type bearing dismantling machine |
||
HQ59 Type Railway Gearbox Bearing Dismantling Machine
HQ59 Type Railway Gearbox Bearing Dismantling Machine, Bull Gear Bearing Dismounting Press, Large Gear Disassembly Press Machine
Application Scope
This bull gear bearing dismantling machine is designed for dismantling bearings at both side of the bull gear in railway power wheelsets, including in subways and bullet trains.
Technical Parameters
| Maximum cylinder force | 160 kN |
| Number of working cylinders | 2 (1 left + 1 right) |
| Cylinder stroke | 300 mm |
| Applicable axle length | 2100-2500 mm |
| Dismounting speed | 1-5 mm/s |
| Loading capacity of the Transfer trolley | 2 tons |
| Max. working pressure of hydraulic system | 14 MPa |
| Main power supply | AC 380V/50Hz, AC 3 phase |
| Auxiliary voltage | 24VDC |
| Installed power capacity | 5 kW |

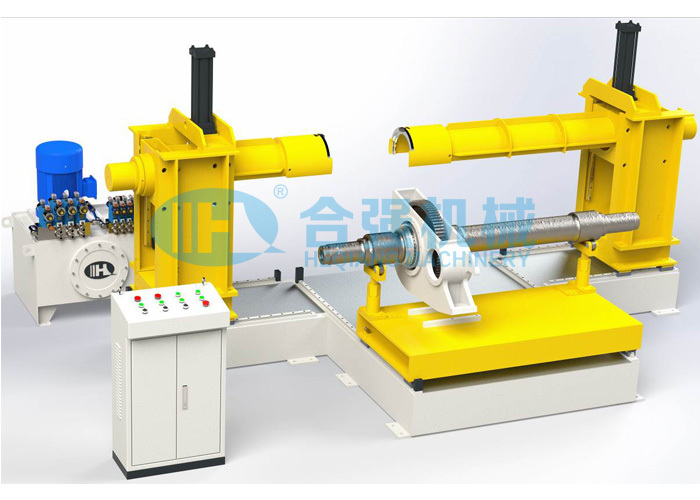

Machine Structure Description

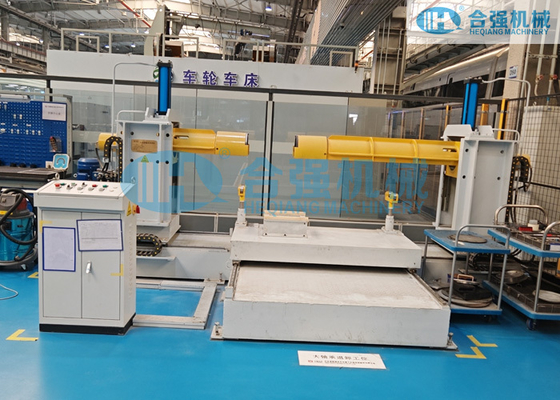

- This machine is a horizontal press and can be directly anchored on the workshop floor.
- The press mainly consists of mechanical part, hydraulic system and electrical control system.
- The mechanical part consists of chassis, 2 mobile cylinder columns, two working cylinders, dismantling claws, lifting cylinders, transfer trolley, etc.
- The mechanical part is steel welding structure and carried out stress relief annealing treatment with sufficient strength and rigidity.
- With Siemens PLC to control the pressing operation.
- With a wireless remote for convenient control.
- Only need to replace the dismantling tool for different types of bull gear bearings.
Warranty & After-sale Service
The warranty lasts for 12 or 18 months from the date of the Site Acceptance Test. During the warranty, the Manufacturer will be responsible for the damage due to the defects in design and manufacture. After the warranty period, the Manufacturer will provide FREE online technical support and spare parts with reasonable prices.
